#include <Ohci.h>

Inheritance diagram for Ohci:

Collaboration diagram for Ohci:

Classes
struct	ED

struct	Hcca

struct	TD

Public Member Functions
	Ohci (Device *pDev)

bool	initialised () const

struct Ohci::TD	ALIGN (16)

struct Ohci::ED	ALIGN (16)

virtual void	getName (String &str)

virtual void	addTransferToTransaction (uintptr_t pTransaction, bool bToggle, UsbPid pid, uintptr_t pBuffer, size_t nBytes)
	Adds a new transfer to an existent transaction.

virtual uintptr_t	createTransaction (UsbEndpoint endpointInfo)
	Creates a new transaction with the given endpoint data.

virtual MUST_USE_RESULT bool	doAsync (uintptr_t pTransaction, void(*pCallback)(uintptr_t, ssize_t)=0, uintptr_t pParam=0)

virtual MUST_USE_RESULT bool	addInterruptInHandler (UsbEndpoint endpointInfo, uintptr_t pBuffer, uint16_t nBytes, void(*pCallback)(uintptr_t, ssize_t), UsbInterruptInHandle &handle, uintptr_t pParam=0)
	Adds an owned recurring interrupt-IN transaction.

IrqDisposition	irq (irq_id_t number) override
	IRQ handler.

virtual bool	portReset (uint8_t nPort, bool bErrorResponse=false)
	Gets a UsbDevice from a given vendor:product pair.

Public Member Functions inherited from UsbHub
	UsbHub (Device *p)

RootConnection	rootConnectionForChild (uint8_t childPort) const

virtual bool	controllerAssignsAddresses () const

virtual bool	supportsHubDevices () const

virtual bool	prepareDevice (uint8_t, const UsbEndpoint &)

virtual bool	addressDevice (uint8_t, const UsbEndpoint &)

virtual bool	resetEndpoint (const UsbEndpoint &)

virtual Type	getType ()

bool	deviceConnected (uint8_t nPort, UsbSpeed speed)
	Called when a device is connected to a port on the hub.

void	deviceDisconnected (uint8_t nPort)
	Called when a device is disconnected from a port on the hub.

ssize_t	doSync (uintptr_t nTransaction, uint32_t timeout=5000)

Public Member Functions inherited from Device
	Device (Device *p)

Device *	getParent () const

void	setParent (Device *p)

virtual const String &	getSpecificType ()

virtual void	setSpecificType (String str)

void	setPciPosition (uint32_t bus, uint32_t device, uint32_t func)

void	setPciIdentifiers (uint8_t classCode, uint8_t subclassCode, uint16_t vendorId, uint16_t deviceId, uint8_t progIf)

void	setPciConfigHeader (const PciBus::ConfigSpace &space)

PciBus::ConfigSpace	getPciConfigHeader () const

uint8_t	getPciClassCode ()

uint8_t	getPciSubclassCode ()

uint16_t	getPciVendorId ()

uint16_t	getPciDeviceId ()

uint8_t	getPciProgInterface ()

uint32_t	getPciBusPosition ()

uint32_t	getPciDevicePosition ()

uint32_t	getPciFunctionNumber ()

Device *	getPhysicalFunction () const

size_t	getVirtualFunctionIndex () const

void	setVirtualFunction (Device *physicalFunction, size_t index)

virtual void	dump (String &str)

virtual Vector< Address * > &	addresses ()

virtual uintptr_t	getInterruptNumber ()

virtual void	setInterruptNumber (uintptr_t n)

void	addChild (Device *pDevice)

Device *	getChild (size_t n)

size_t	getNumChildren ()

void	removeChild (size_t n)

void	removeChild (Device *d)

void	replaceChild (Device src, Device dest)

Public Member Functions inherited from IrqHandler
virtual bool	acceptsSpuriousInterrupts () const

Public Member Functions inherited from RequestQueue
	RequestQueue (const String &name)

virtual void	initialise ()

virtual void	destroy ()

MUST_USE_RESULT uint64_t	addRequest (size_t priority, uint64_t p1=0, uint64_t p2=0, uint64_t p3=0, uint64_t p4=0, uint64_t p5=0, uint64_t p6=0, uint64_t p7=0, uint64_t p8=0)

MUST_USE_RESULT uint64_t	addRequest (size_t priority, ActionOnDuplicate action, uint64_t p1=0, uint64_t p2=0, uint64_t p3=0, uint64_t p4=0, uint64_t p5=0, uint64_t p6=0, uint64_t p7=0, uint64_t p8=0)

uint64_t	addAsyncRequest (size_t priority, uint64_t p1=0, uint64_t p2=0, uint64_t p3=0, uint64_t p4=0, uint64_t p5=0, uint64_t p6=0, uint64_t p7=0, uint64_t p8=0)

MUST_USE_RESULT bool	publishAsyncRequest (size_t priority, uint64_t p1=0, uint64_t p2=0, uint64_t p3=0, uint64_t p4=0, uint64_t p5=0, uint64_t p6=0, uint64_t p7=0, uint64_t p8=0)

bool	canWaitForCompletion ()

MUST_USE_RESULT bool	waitForPreallocated (PreallocatedRequest &request)

MUST_USE_RESULT PreallocatedPublishResult	publishPreallocated (PreallocatedRequest &request, size_t priority, uint64_t p1=0, uint64_t p2=0, uint64_t p3=0, uint64_t p4=0, uint64_t p5=0, uint64_t p6=0, uint64_t p7=0, uint64_t p8=0)

MUST_USE_RESULT PreallocatedPublishResult	republishPreallocatedWhileReleasing (PreallocatedRequest &request, size_t priority, uint64_t p1=0, uint64_t p2=0, uint64_t p3=0, uint64_t p4=0, uint64_t p5=0, uint64_t p6=0, uint64_t p7=0, uint64_t p8=0)

MUST_USE_RESULT bool	halt ()

MUST_USE_RESULT bool	resume ()

LifecycleState	getLifecycleState ()

bool	drain ()

Public Attributes
struct Ohci::Hcca	PACKED

Protected Member Functions
virtual void	cancelAsyncAndDrain (uintptr_t pTransaction, void(*pCallback)(uintptr_t, ssize_t), uintptr_t pParam)

MUST_USE_RESULT bool	cancelInterruptInAndDrain (const UsbInterruptInToken &token, void(*callback)(uintptr_t, ssize_t), uintptr_t parameter, bool producerAlreadyStopped) override

bool	inInterruptCallbackContext () const override

void	replaySuppressedConnectionChange (size_t port) override

virtual uint64_t	executeRequest (uint64_t p1=0, uint64_t p2=0, uint64_t p3=0, uint64_t p4=0, uint64_t p5=0, uint64_t p6=0, uint64_t p7=0, uint64_t p8=0)

void	cancelRequest (const Request &request) override

Protected Member Functions inherited from UsbHub
virtual bool	portSpeed (uint8_t, UsbSpeed &)

virtual bool	beginStartupActivity ()

virtual void	endStartupActivity (UsbStartup::Outcome)

virtual void	releaseDeviceAddress (uint8_t)

MUST_USE_RESULT bool	publishInterruptInHandle (UsbInterruptInHandle &handle, const UsbInterruptInToken &token, void(*callback)(uintptr_t, ssize_t), uintptr_t parameter)

void	disconnectAllDevices ()

void	retainDisconnectedAddressesUntilControllerTeardown ()

void	attachToUpstreamHub (UsbHub *upstream, const RootConnection &connection)

UsbHub *	rootHub () const

MUST_USE_RESULT bool	suppressConnectionChanges (size_t port, ConnectionChangeSuppression &suppression)

MUST_USE_RESULT bool	deferConnectionChangeIfSuppressed (size_t port)

virtual size_t	currentRootPortGeneration (size_t port) const

Protected Member Functions inherited from Device
	NOT_COPYABLE_OR_ASSIGNABLE (Device)

Protected Member Functions inherited from IrqHandler
virtual	~IrqHandler ()

Protected Member Functions inherited from IrqHandlerBase
virtual	~IrqHandlerBase ()

Protected Member Functions inherited from RequestQueue
virtual bool	workerPlacement (ThreadPlacement &) const

	RequestQueue (const RequestQueue &)

void	operator= (const RequestQueue &)

virtual bool	compareRequests (const Request &a, const Request &b)

int	work ()

NextRequestResult	getNextRequest (Request *&request)

bool	drainIntakeLocked (size_t priority)

void	publishRequest (Request *request)

Request *	findDuplicate (const Request &request)

void	discardRequest (Request *request)

uint64_t	addAsyncRequestInternal (size_t priority, uint64_t p1, uint64_t p2, uint64_t p3, uint64_t p4, uint64_t p5, uint64_t p6, uint64_t p7, uint64_t p8)

PreallocatedPublishResult	publishPreallocatedRequest (PreallocatedRequest &request, PreallocatedRequest::State availableState, size_t priority, uint64_t p1, uint64_t p2, uint64_t p3, uint64_t p4, uint64_t p5, uint64_t p6, uint64_t p7, uint64_t p8)

void	releasePreallocatedRequest (Request *request)

void	invokeCancelRequest (const Request &request)

bool	callbackActiveOnCurrentThread () const

void	releaseRequest (Request *request)

uint64_t	waitForRequest (Request *request)

bool	startWorker ()

bool	stopWorker ()

void	closePreallocatedAdmission ()

void	waitForPreallocatedPublishers ()

Private Types
enum	Lists { PeriodicList = 0x4 , IsochronousList = 0x8 , ControlList = 0x10 , BulkList = 0x20 }
	Enumeration of lists that can be stopped or started. More...

enum	OhciConstants { OhciVersion = 0x00 , OhciControl = 0x04 , OhciCommandStatus = 0x08 , OhciInterruptStatus = 0x0c , OhciInterruptEnable = 0x10 , OhciInterruptDisable = 0x14 , OhciHcca = 0x18 , OhciControlHeadED = 0x20 , OhciControlCurrentED = 0x24 , OhciBulkHeadED = 0x28 , OhciBulkCurrentED = 0x2c , OhciFmInterval = 0x34 , OhciRhDescriptorA = 0x48 , OhciRhStatus = 0x50 , OhciRhPortStatus = 0x54 , OhciControlStateFunctionalMask = 0xC0 , OhciControlInterruptRoute = 0x100 , OhciControlStateRunning = 0x80 , OhciControlStateSuspended = 0xC0 , OhciControlListsEnable = 0x30 , OhciCommandRequestOwnership = 0x08 , OhciCommandBulkListFilled = 0x04 , OhciCommandControlListFilled = 0x02 , OhciCommandHcReset = 0x01 , OhciInterruptMIE = 0x80000000 , OhciInterruptOwnershipChange = 0x40000000 , OhciInterruptRhStsChange = 0x40 , OhciInterruptFrameNumberOverflow = 0x20 , OhciInterruptUnrecoverableError = 0x10 , OhciInterruptResumeDetected = 0x08 , OhciInterruptWbDoneHead = 0x02 , OhciInterruptSchedulingOverrun = 0x01 , OhciInterruptStartOfFrame = 0x04 , OhciInterruptAll = OhciInterruptMIE \| OhciInterruptOwnershipChange \| 0x7F , OhciInterruptOperational , OhciRhHubStsSetGlobalPower = 0x10000 , OhciRhHubStsOverCurrentCh = 0x20000 , OhciRhPortStsResCh = 0x100000 , OhciRhPortStsOverCurrentCh = 0x80000 , OhciRhPortStsSuspendCh = 0x40000 , OhciRhPortStsEnableCh = 0x20000 , OhciRhPortStsConnStsCh = 0x10000 , OhciRhPortStsChangeMask , OhciRhPortStsLoSpeed = 0x200 , OhciRhPortStsPower = 0x100 , OhciRhPortStsReset = 0x10 , OhciRhPortStsEnable = 0x02 , OhciRhPortStsConnected = 0x01 }

using	ControllerLock = Mutex

using	IrqProcessingLock = Mutex

Private Member Functions
void	stop (Lists list)
	Stops the controller from processing the given list.

void	start (Lists list)
	Starts processing of the given list.

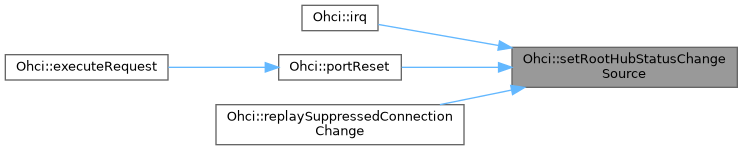

void	setRootHubStatusChangeSource (bool enabled)

void	transitionControllerState (uint32_t control, const char *timeoutMessage)

void	removeED (ED *pED)
	Detaches an ED and queues it for reclamation at the next frame.

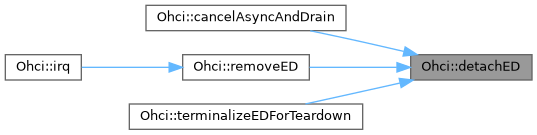

void	detachED (ED *pED)

void	removeFromFullSchedule (ED *pED)

void	removeFromDequeueList (ED *pED)

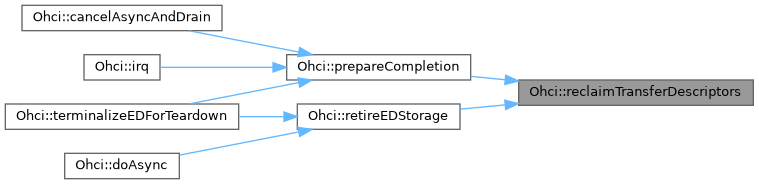

void	reclaimTransferDescriptors (ED *pED)

void	retireEDStorage (ED *pED)

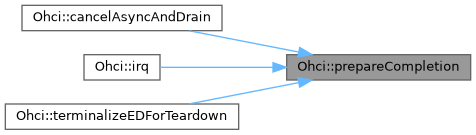

UsbHcd::CallbackDeliveryQueue::Record *	prepareCompletion (ED *pED, const UsbHcd::TransferCompletion::Claim &claim)

void	terminalizeEDForTeardown (ED pED, List< UsbHcd::CallbackDeliveryQueue::Record > &completions)

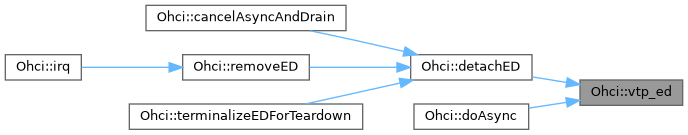

physical_uintptr_t	vtp_ed (ED *pED)
	Converts a software ED pointer to a physical address.

ED *	ptv_ed (physical_uintptr_t phys)
	Converts a physical address to an ED pointer. Maybe.

	Ohci (const Ohci &)

void	operator= (const Ohci &)

Static Private Member Functions
static void	finishDeferredCompletion (void *context)

Private Attributes
IoBase *	m_pBase

uint8_t	m_nPorts

bool	m_Initialised

UsbHcd::PortChangeRequest	m_PortChanges [UsbHcd::OhciRootPortCount]

UsbHcd::DeferredPortChanges	m_DeferredPortChanges

ControllerLock	m_Mutex
	Global lock.

ControllerLock	m_PortResetMutex

Hcca *	m_pHcca

uintptr_t	m_pHccaPhys

IrqProcessingLock	m_IrqProcessingLock
	Lock for modifying the schedule list itself (m_FullSchedule)

UsbHcd::CallbackDeliveryQueue	m_CompletionDeliveries

Spinlock	m_RootHubLock
	Serializes root-hub register access between reset and IRQ paths.

bool	m_RootHubStatusChangeDesired

bool	m_PortResetActive

Atomic< size_t >	m_TeardownPhase

Spinlock	m_ScheduleChangeLock

Spinlock	m_PeriodicListChangeLock
	Lock for changing the periodic list.

Spinlock	m_ControlListChangeLock
	Lock for changing the control list.

Spinlock	m_BulkListChangeLock
	Lock for changing the bulk list.

ED *	m_pPeriodicEDList

uintptr_t	m_pPeriodicEDListPhys

ExtensibleBitmap	m_PeriodicEDBitmap

ED *	m_pControlEDList

uintptr_t	m_pControlEDListPhys

ExtensibleBitmap	m_ControlEDBitmap

ED *	m_pBulkEDList

uintptr_t	m_pBulkEDListPhys

ExtensibleBitmap	m_BulkEDBitmap

TD *	m_pTDList

uintptr_t	m_pTDListPhys

ExtensibleBitmap	m_TDBitmap

ED *	m_pBulkQueueHead

ED *	m_pControlQueueHead

ED *	m_pBulkQueueTail

ED *	m_pControlQueueTail

ED *	m_pPeriodicQueueTail

Spinlock	m_DequeueListLock
	Dequeue list lock.

List< ED * >	m_FullSchedule

List< ED * >	m_DequeueList
	List of EDs ready for dequeue (reclaiming)

Semaphore	m_DequeueCount
	Semaphore for the dequeue list.

MemoryRegion	m_OhciMR

OperationBarrier	m_CallbackOperations

OperationBarrier	m_SubmissionOperations

OperationBarrier	m_CancellationOperations

OperationBarrier	m_AcceptedOperations

irq_id_t	m_IrqId

Static Private Attributes
static constexpr size_t	EdRegionBytes = 4096

static constexpr size_t	EdRegionOffsetMask = EdRegionBytes - 1

Additional Inherited Members
Public Types inherited from Device
enum	Type { Generic , Root , Disk , Bus , Display , Network , Sound , Console , Mouse , Controller , UsbController , UsbGeneric , UsbContainer }

typedef Device (	Callback) (Device *)

Public Types inherited from RequestQueue
enum class	OverrunStatus { Clear , Armed , Stalled , Overloaded }

enum class	PreallocatedPublishResult { Accepted , TokenBusy , QueueStopped , QueueFull , InvalidPriority }

enum	ActionOnDuplicate { Block , NewRequest , ReturnImmediately }

enum class	LifecycleState { Stopped , Accepting , Stopping , Destroyed }

Static Public Member Functions inherited from Device
static bool	treeLockHeldByCurrentThread ()

static void	foreach (Callback callback, Device *root=0)

template<class F , class... Args>
static void	foreach (pedigree_std::Callable< F > &callback, Device *root, Args... args)

static void	addToRoot (Device *device)

static void	searchByVendorId (uint16_t vendorId, void(callback)(Device ), Device *root=0)

static void	searchByVendorIdAndDeviceId (uint16_t vendorId, uint16_t deviceId, void(callback)(Device ), Device *root=0)

static void	searchByClass (uint16_t classCode, void(callback)(Device ), Device *root=0)

static void	searchByClassAndSubclass (uint16_t classCode, uint16_t subclassCode, void(callback)(Device ), Device *root=0)

static void	searchByClassSubclassAndProgInterface (uint16_t classCode, uint16_t subclassCode, uint8_t progInterface, void(callback)(Device ), Device *root=0)

Protected Types inherited from RequestQueue
enum class	NextRequestResult { Item , Empty , Retry }

Static Protected Member Functions inherited from Device
static Device &	root ()

Static Protected Member Functions inherited from RequestQueue
static int	trampoline (void *p)

static void	completeRequest (Request *request, uint64_t returnValue, bool rejected)

static void	retainRequest (Request *request)

Protected Attributes inherited from Device
Vector< Address * >	m_Addresses

Vector< Device * >	m_Children

Device *	m_pParent

Device *	m_PhysicalFunction

size_t	m_VirtualFunctionIndex

uintptr_t	m_InterruptNumber

String	m_SpecificType

PciBus::ConfigSpace	m_ConfigHeader

uint8_t	m_ClassCode

uint8_t	m_SubclassCode

uint16_t	m_VendorId

uint16_t	m_DeviceId

uint8_t	m_ProgInterface

uint32_t	m_PciBusPos

uint32_t	m_PciDevicePos

uint32_t	m_PciFunctionNum

Protected Attributes inherited from RequestQueue
IntakeLane	m_IntakeLanes [REQUEST_QUEUE_NUM_PRIORITIES]

Request *	m_pRequestQueue [REQUEST_QUEUE_NUM_PRIORITIES]

Request *	m_pRequestQueueTail [REQUEST_QUEUE_NUM_PRIORITIES]

Request *	m_pActiveRequest

Atomic< size_t >	m_State

Mutex	m_LifecycleMutex

WaitQueue	m_RequestQueueWaiters

WaitQueue	m_WorkerWaiters

Thread *	m_pThread

Atomic< PerProcessorScheduler * >	m_pWorkerScheduler

SchedulerWorkerWake	m_WorkerWake

Atomic< size_t >	m_bWorkerReady

Atomic< size_t >	m_bWorkerActive

size_t	m_WorkerProgressGeneration

RequestQueueOverrunChecker	m_OverrunChecker

Timer *	m_pOverrunTimer

Atomic< size_t >	m_PublicationState

size_t	m_nMaxAsyncRequests

Atomic< size_t >	m_nAsyncRequests

Atomic< size_t >	m_nTotalRequests

Atomic< size_t >	m_nActiveRequests

NormalStaticString	m_Name

Static Protected Attributes inherited from Device
static Device	m_Root

static Mutex	m_TreeLock

Static Protected Attributes inherited from RequestQueue
static constexpr size_t	PublicationClosed = static_cast<size_t>(1) << ((sizeof(size_t) * 8) - 1)

static constexpr size_t	PublicationCountMask = ~PublicationClosed

Detailed Description

Device driver for the Ohci class

Definition at line 50 of file Ohci.h.

Member Typedef Documentation

◆ ControllerLock

using Ohci::ControllerLock = Mutex

private

Definition at line 60 of file Ohci.h.

◆ IrqProcessingLock

using Ohci::IrqProcessingLock = Mutex

private

Definition at line 68 of file Ohci.h.

Member Enumeration Documentation

◆ Lists

enum Ohci::Lists

private

Enumeration of lists that can be stopped or started.

Definition at line 74 of file Ohci.h.

◆ OhciConstants

enum Ohci::OhciConstants

private

Definition at line 296 of file Ohci.h.

Constructor & Destructor Documentation

◆ Ohci()

Ohci::Ohci ( Device * pDev )

Definition at line 91 of file Ohci.cc.

◆ ~Ohci()

Ohci::~Ohci ( )

virtual

Definition at line 424 of file Ohci.cc.

Member Function Documentation

◆ addInterruptInHandler()

bool Ohci::addInterruptInHandler	(	UsbEndpoint	endpointInfo,
		uintptr_t	pBuffer,
		uint16_t	nBytes,
		void(*)(uintptr_t, ssize_t)	pCallback,
		UsbInterruptInHandle &	handle,
		uintptr_t	pParam = `0`
	)

virtual

Adds an owned recurring interrupt-IN transaction.

Implements UsbHub.

Definition at line 1643 of file Ohci.cc.

◆ addTransferToTransaction()

void Ohci::addTransferToTransaction	(	uintptr_t	pTransaction,
		bool	bToggle,
		UsbPid	pid,
		uintptr_t	pBuffer,
		size_t	nBytes
	)

virtual

Adds a new transfer to an existent transaction.

Implements UsbHub.

Definition at line 1182 of file Ohci.cc.

References ExtensibleBitmap::clear(), ExtensibleBitmap::getFirstClear(), ProcessorBase::information(), m_IrqProcessingLock, m_Mutex, m_SubmissionOperations, List< T, nodePoolSize >::pushBack(), ExtensibleBitmap::set(), ExtensibleBitmap::test(), and OperationBarrier::tryAcquire().

◆ cancelAsyncAndDrain()

void Ohci::cancelAsyncAndDrain	(	uintptr_t	pTransaction,
		void(*)(uintptr_t, ssize_t)	pCallback,
		uintptr_t	pParam
	)

protectedvirtual

Cancels an accepted transaction or drains a completion which won the race. On return, the matching callback has run exactly once and the controller can no longer access any transfer buffer.

The callback and parameter identify the original transaction generation, preventing a stale numeric transaction handle from cancelling a reused controller slot.

Implements UsbHub.

Definition at line 1541 of file Ohci.cc.

References UsbHcd::TransferCompletion::claimCancellation(), List< T, nodePoolSize >::count(), UsbHcd::CallbackDeliveryQueue::deliver(), detachED(), UsbHcd::CallbackDeliveryQueue::drain(), m_CancellationOperations, m_CompletionDeliveries, m_IrqProcessingLock, m_Mutex, List< T, nodePoolSize >::popFront(), prepareCompletion(), UsbHcd::CallbackDeliveryQueue::publish(), List< T, nodePoolSize >::pushBack(), IoBase::read32(), removeFromDequeueList(), removeFromFullSchedule(), ExtensibleBitmap::test(), transitionControllerState(), OperationBarrier::tryAcquire(), and IoBase::write32().

◆ cancelInterruptInAndDrain()

bool Ohci::cancelInterruptInAndDrain	(	const UsbInterruptInToken &	token,
		void(*)(uintptr_t, ssize_t)	callback,
		uintptr_t	parameter,
		bool	producerAlreadyStopped
	)

overrideprotectedvirtual

Stops and drains one exact recurring interrupt-IN subscription.

Implements UsbHub.

Definition at line 1632 of file Ohci.cc.

References panic().

◆ cancelRequest()

void Ohci::cancelRequest ( const Request & request )

overrideprotectedvirtual

Releases payload ownership for a request that will not execute.

This runs without the queue guard for rejected candidates (including stopped queues, duplicates and capacity limits) and queued requests cancelled by destroy(). Implementations used by allocation-free producers must not sleep. Derived destructors must call destroy() while their override and member state are still alive. During destroy(), the lifecycle is serialized: halt() and resume() on this queue return false, while recursive destroy() is a fatal contract violation.

Reimplemented from RequestQueue.

Definition at line 1792 of file Ohci.cc.

◆ createTransaction()

uintptr_t Ohci::createTransaction ( UsbEndpoint endpointInfo )

virtual

Creates a new transaction with the given endpoint data.

Implements UsbHub.

Definition at line 1322 of file Ohci.cc.

References ExtensibleBitmap::getFirstClear(), m_IrqProcessingLock, m_Mutex, m_SubmissionOperations, Ohci::ED::MetaData::pCallback, ExtensibleBitmap::set(), and OperationBarrier::tryAcquire().

◆ detachED()

void Ohci::detachED ( ED * pED )

private

Detaches a control or bulk ED without arming SOF or restarting a list.

Todo:: Isochronous and Periodic.

Definition at line 645 of file Ohci.cc.

References EMIT_IF, m_BulkListChangeLock, m_ControlListChangeLock, vtp_ed(), and IoBase::write32().

Referenced by cancelAsyncAndDrain(), removeED(), and terminalizeEDForTeardown().

Here is the caller graph for this function:

◆ doAsync()

bool Ohci::doAsync	(	uintptr_t	pTransaction,
		void(*)(uintptr_t, ssize_t)	pCallback = `0`,
		uintptr_t	pParam = `0`
	)

virtual

Performs a transaction asynchronously.

Returning true transfers one completion obligation to the controller: it must call the callback exactly once, and only after it can no longer access any transfer buffer. Returning false guarantees that the callback was not and will not be called, and that the rejected transaction no longer owns controller or transfer-buffer state.

Implements UsbHub.

Definition at line 1383 of file Ohci.cc.

References Spinlock::acquire(), UsbHcd::TransferCompletion::arm(), EMIT_IF, m_AcceptedOperations, m_BulkListChangeLock, m_CompletionDeliveries, m_ControlListChangeLock, m_FullSchedule, m_IrqProcessingLock, m_Mutex, m_SubmissionOperations, IoBase::read32(), Spinlock::release(), retireEDStorage(), start(), ExtensibleBitmap::test(), OperationBarrier::tryAcquire(), OperationBarrier::tryEnter(), vtp_ed(), and IoBase::write32().

◆ executeRequest()

uint64_t Ohci::executeRequest	(	uint64_t	p1 = `0`,
		uint64_t	p2 = `0`,
		uint64_t	p3 = `0`,
		uint64_t	p4 = `0`,
		uint64_t	p5 = `0`,
		uint64_t	p6 = `0`,
		uint64_t	p7 = `0`,
		uint64_t	p8 = `0`
	)

protectedvirtual

Callback - classes are expected to inherit and override this function. It's called when a request needs to be executed (by the worker thread).

Implements RequestQueue.

Definition at line 1762 of file Ohci.cc.

References Dec, UsbHub::deviceConnected(), UsbHub::deviceDisconnected(), Hex, portReset(), and IoBase::read32().

◆ finishDeferredCompletion()

void Ohci::finishDeferredCompletion ( void * context )

staticprivate

Definition at line 77 of file Ohci.cc.

◆ getName()

virtual void Ohci::getName ( String & str )

inlinevirtual

Stores the device's name in str.

Reimplemented from Device.

Definition at line 177 of file Ohci.h.

◆ inInterruptCallbackContext()

bool Ohci::inInterruptCallbackContext ( ) const

inlineoverrideprotectedvirtual

True when this execution context must not wait for a USB callback.

Reimplemented from UsbHub.

Definition at line 208 of file Ohci.h.

References UsbHcd::CallbackDeliveryQueue::isInCallbackContext().

◆ initialised()

bool Ohci::initialised ( ) const

inline

Definition at line 80 of file Ohci.h.

◆ irq()

IrqDisposition Ohci::irq ( irq_id_t number )

overridevirtual

IRQ handler.

Todo:: Handle.

Note: List processing won't start until the NEXT SOF.; It might be nice to document this.

Implements IrqHandler.

Definition at line 817 of file Ohci.cc.

References List< T, nodePoolSize >::begin(), UsbHcd::TransferCompletion::captureNatural(), UsbHcd::TransferCompletion::claimCaptured(), List< T, nodePoolSize >::count(), Dec, UsbHub::deferConnectionChangeIfSuppressed(), UsbHcd::CallbackDeliveryQueue::deliver(), EMIT_IF, List< T, nodePoolSize >::end(), List< T, nodePoolSize >::erase(), Hex, m_CallbackOperations, m_CompletionDeliveries, m_DequeueList, m_DequeueListLock, m_FullSchedule, m_IrqProcessingLock, m_RootHubLock, Ohci::ED::MetaData::pCallback, List< T, nodePoolSize >::popFront(), prepareCompletion(), UsbHcd::CallbackDeliveryQueue::publish(), List< T, nodePoolSize >::pushBack(), List< T, nodePoolSize >::pushFront(), Quiesced, IoBase::read32(), removeED(), setRootHubStatusChangeSource(), start(), OperationBarrier::tryAcquire(), and IoBase::write32().

◆ portReset()

bool Ohci::portReset	(	uint8_t	nPort,
		bool	bErrorResponse = `false`
	)

virtual

Gets a UsbDevice from a given vendor:product pair.

Performs a port reset for the given port. Should only be used in situations where a device cannot recover from an error without a complete reset.

Note: Assumes the port is at CONNECTED with a VALID DEVICE attached.

Parameters

bErrorResponse true if this is a reset as a response to an error. Error responses are allowed to use significantly longer delays in their reset logic.

Todo:: Error handling? Device fails to reset? Not present after reset?

Implements UsbHub.

Definition at line 1690 of file Ohci.cc.

References m_PortResetMutex, m_RootHubLock, IoBase::read32(), setRootHubStatusChangeSource(), and IoBase::write32().

Referenced by executeRequest().

Here is the caller graph for this function:

◆ prepareCompletion()

UsbHcd::CallbackDeliveryQueue::Record * Ohci::prepareCompletion	(	ED *	pED,
		const UsbHcd::TransferCompletion::Claim &	claim
	)

private

Builds the sole delivery record for a claimed one-shot transfer.

Definition at line 781 of file Ohci.cc.

References m_CompletionDeliveries, and reclaimTransferDescriptors().

Referenced by cancelAsyncAndDrain(), irq(), and terminalizeEDForTeardown().

Here is the caller graph for this function:

◆ ptv_ed()

ED * Ohci::ptv_ed ( physical_uintptr_t phys )

inlineprivate

Converts a physical address to an ED pointer. Maybe.

Todo:: defines for the list sizes so changing one doesn't involve rewriting heaps of code

Definition at line 281 of file Ohci.h.

◆ reclaimTransferDescriptors()

void Ohci::reclaimTransferDescriptors ( ED * pED )

private

Releases every TD owned by an ED after the DMA ownership boundary.

Definition at line 735 of file Ohci.cc.

References List< T, nodePoolSize >::begin(), List< T, nodePoolSize >::clear(), ExtensibleBitmap::clear(), and List< T, nodePoolSize >::end().

Referenced by prepareCompletion(), and retireEDStorage().

Here is the caller graph for this function:

◆ removeED()

void Ohci::removeED ( ED * pED )

private

Detaches an ED and queues it for reclamation at the next frame.

Note: Refer to page 56 in the OHCI spec for this function.

Definition at line 618 of file Ohci.cc.

References detachED(), EMIT_IF, m_DequeueList, m_DequeueListLock, stop(), and IoBase::write32().

Referenced by irq().

Here is the caller graph for this function:

◆ removeFromDequeueList()

void Ohci::removeFromDequeueList ( ED * pED )

private

Removes an ED from the next-frame reclaim list if present.

Definition at line 724 of file Ohci.cc.

References m_DequeueList, and m_DequeueListLock.

Referenced by cancelAsyncAndDrain(), and terminalizeEDForTeardown().

Here is the caller graph for this function:

◆ removeFromFullSchedule()

void Ohci::removeFromFullSchedule ( ED * pED )

private

Removes an ED from the software completion schedule if present.

Definition at line 713 of file Ohci.cc.

References m_FullSchedule.

Referenced by cancelAsyncAndDrain(), and terminalizeEDForTeardown().

Here is the caller graph for this function:

◆ replaySuppressedConnectionChange()

void Ohci::replaySuppressedConnectionChange ( size_t port )

overrideprotectedvirtual

Re-publishes one coalesced observation in ordinary thread context.

Reimplemented from UsbHub.

Definition at line 1658 of file Ohci.cc.

References Dec, m_IrqProcessingLock, m_RootHubLock, and setRootHubStatusChangeSource().

◆ retireEDStorage()

void Ohci::retireEDStorage ( ED * pED )

private

Releases ED metadata and its accepted-operation lease.

Definition at line 758 of file Ohci.cc.

References ExtensibleBitmap::clear(), OperationBarrier::leave(), m_AcceptedOperations, and reclaimTransferDescriptors().

Referenced by doAsync(), and terminalizeEDForTeardown().

Here is the caller graph for this function:

◆ setRootHubStatusChangeSource()

void Ohci::setRootHubStatusChangeSource ( bool enabled )

private

Changes only the RootHubStatusChange interrupt source.

Callers hold m_RootHubLock so reset and interrupt paths cannot race the source mask.

Definition at line 598 of file Ohci.cc.

References IoBase::read32(), and IoBase::write32().

Referenced by irq(), portReset(), and replaySuppressedConnectionChange().

Here is the caller graph for this function:

◆ start()

void Ohci::start ( Lists list )

private

Starts processing of the given list.

Definition at line 1807 of file Ohci.cc.

References IoBase::read32(), and IoBase::write32().

Referenced by doAsync(), and irq().

Here is the caller graph for this function:

◆ stop()

void Ohci::stop ( Lists list )

private

Stops the controller from processing the given list.

Definition at line 1798 of file Ohci.cc.

References IoBase::read32(), and IoBase::write32().

Referenced by removeED().

Here is the caller graph for this function:

◆ terminalizeEDForTeardown()

void Ohci::terminalizeEDForTeardown	(	ED *	pED,
		List< UsbHcd::CallbackDeliveryQueue::Record * > &	completions
	)

private

Claims and materializes one ED while the suspended controller is owned.

Definition at line 796 of file Ohci.cc.

References UsbHcd::TransferCompletion::claimForTeardown(), detachED(), prepareCompletion(), List< T, nodePoolSize >::pushBack(), removeFromDequeueList(), removeFromFullSchedule(), and retireEDStorage().

◆ transitionControllerState()

void Ohci::transitionControllerState	(	uint32_t	control,
		const char *	timeoutMessage
	)

private

Writes HcControl and waits for the requested functional state.

Definition at line 603 of file Ohci.cc.

References panic(), IoBase::read32(), and IoBase::write32().

Referenced by cancelAsyncAndDrain().

Here is the caller graph for this function:

◆ vtp_ed()

physical_uintptr_t Ohci::vtp_ed ( ED * pED )

inlineprivate

Converts a software ED pointer to a physical address.

Definition at line 264 of file Ohci.h.

Referenced by detachED(), and doAsync().

Here is the caller graph for this function:

Member Data Documentation

◆ EdRegionBytes

constexpr size_t Ohci::EdRegionBytes = 4096

staticconstexprprivate

Definition at line 56 of file Ohci.h.

◆ EdRegionOffsetMask

constexpr size_t Ohci::EdRegionOffsetMask = EdRegionBytes - 1

staticconstexprprivate

Definition at line 57 of file Ohci.h.

◆ m_AcceptedOperations

OperationBarrier Ohci::m_AcceptedOperations

private

One lease per accepted one-shot or periodic subscription.

Definition at line 453 of file Ohci.h.

Referenced by doAsync(), and retireEDStorage().

◆ m_BulkEDBitmap

ExtensibleBitmap Ohci::m_BulkEDBitmap

private

Definition at line 411 of file Ohci.h.

◆ m_BulkListChangeLock

Spinlock Ohci::m_BulkListChangeLock

private

Lock for changing the bulk list.

Definition at line 399 of file Ohci.h.

Referenced by detachED(), and doAsync().

◆ m_CallbackOperations

OperationBarrier Ohci::m_CallbackOperations

private

Closes and drains interrupt callbacks before controller teardown.

Definition at line 444 of file Ohci.h.

Referenced by irq().

◆ m_CancellationOperations

OperationBarrier Ohci::m_CancellationOperations

private

Cancellation calls remain admitted until terminal callbacks drain.

Definition at line 450 of file Ohci.h.

Referenced by cancelAsyncAndDrain().

◆ m_CompletionDeliveries

UsbHcd::CallbackDeliveryQueue Ohci::m_CompletionDeliveries

private

Per-generation callback publication and cancellation drain boundary.

Definition at line 382 of file Ohci.h.

Referenced by cancelAsyncAndDrain(), doAsync(), irq(), and prepareCompletion().

◆ m_ControlEDBitmap

ExtensibleBitmap Ohci::m_ControlEDBitmap

private

Definition at line 407 of file Ohci.h.

◆ m_ControlListChangeLock

Spinlock Ohci::m_ControlListChangeLock

private

Lock for changing the control list.

Definition at line 396 of file Ohci.h.

Referenced by detachED(), and doAsync().

◆ m_DeferredPortChanges

UsbHcd::DeferredPortChanges Ohci::m_DeferredPortChanges

private

Definition at line 366 of file Ohci.h.

◆ m_DequeueCount

Semaphore Ohci::m_DequeueCount

private

Semaphore for the dequeue list.

Definition at line 439 of file Ohci.h.

◆ m_DequeueList

List<ED*> Ohci::m_DequeueList

private

List of EDs ready for dequeue (reclaiming)

Definition at line 436 of file Ohci.h.

Referenced by irq(), removeED(), and removeFromDequeueList().

◆ m_DequeueListLock

Spinlock Ohci::m_DequeueListLock

private

Dequeue list lock.

Definition at line 429 of file Ohci.h.

Referenced by irq(), removeED(), and removeFromDequeueList().

◆ m_FullSchedule

List<ED*> Ohci::m_FullSchedule

private

List of ED pointers in both the control and bulk queues. Used for IRQ handling.

Definition at line 433 of file Ohci.h.

Referenced by doAsync(), irq(), and removeFromFullSchedule().

◆ m_Initialised

bool Ohci::m_Initialised

private

Definition at line 364 of file Ohci.h.

◆ m_IrqId

irq_id_t Ohci::m_IrqId

private

Definition at line 454 of file Ohci.h.

◆ m_IrqProcessingLock

IrqProcessingLock Ohci::m_IrqProcessingLock

private

Lock for modifying the schedule list itself (m_FullSchedule)

Definition at line 379 of file Ohci.h.

Referenced by addTransferToTransaction(), cancelAsyncAndDrain(), createTransaction(), doAsync(), irq(), and replaySuppressedConnectionChange().

◆ m_Mutex

ControllerLock Ohci::m_Mutex

private

Global lock.

Definition at line 369 of file Ohci.h.

Referenced by addTransferToTransaction(), cancelAsyncAndDrain(), createTransaction(), and doAsync().

◆ m_nPorts

uint8_t Ohci::m_nPorts

private

Definition at line 363 of file Ohci.h.

◆ m_OhciMR

MemoryRegion Ohci::m_OhciMR

private

Definition at line 441 of file Ohci.h.

◆ m_pBase

IoBase* Ohci::m_pBase

private

Definition at line 361 of file Ohci.h.

◆ m_pBulkEDList

ED* Ohci::m_pBulkEDList

private

Definition at line 409 of file Ohci.h.

◆ m_pBulkEDListPhys

uintptr_t Ohci::m_pBulkEDListPhys

private

Definition at line 410 of file Ohci.h.

◆ m_pBulkQueueHead

ED* Ohci::m_pBulkQueueHead

private

Definition at line 418 of file Ohci.h.

◆ m_pBulkQueueTail

ED* Ohci::m_pBulkQueueTail

private

Definition at line 422 of file Ohci.h.

◆ m_pControlEDList

ED* Ohci::m_pControlEDList

private

Definition at line 405 of file Ohci.h.

◆ m_pControlEDListPhys

uintptr_t Ohci::m_pControlEDListPhys

private

Definition at line 406 of file Ohci.h.

◆ m_pControlQueueHead

ED* Ohci::m_pControlQueueHead

private

Definition at line 419 of file Ohci.h.

◆ m_pControlQueueTail

ED* Ohci::m_pControlQueueTail

private

Definition at line 423 of file Ohci.h.

◆ m_PeriodicEDBitmap

ExtensibleBitmap Ohci::m_PeriodicEDBitmap

private

Definition at line 403 of file Ohci.h.

◆ m_PeriodicListChangeLock

Spinlock Ohci::m_PeriodicListChangeLock

private

Lock for changing the periodic list.

Definition at line 393 of file Ohci.h.

◆ m_pHcca

Hcca* Ohci::m_pHcca

private

Definition at line 375 of file Ohci.h.

◆ m_pHccaPhys

uintptr_t Ohci::m_pHccaPhys

private

Definition at line 376 of file Ohci.h.

◆ m_PortChanges

UsbHcd::PortChangeRequest Ohci::m_PortChanges[UsbHcd::OhciRootPortCount]

private

Definition at line 365 of file Ohci.h.

◆ m_PortResetActive

bool Ohci::m_PortResetActive

private

Definition at line 387 of file Ohci.h.

◆ m_PortResetMutex

ControllerLock Ohci::m_PortResetMutex

private

Serializes threaded root-port resets without holding an IRQ-safe lock while waiting for hardware.

Definition at line 373 of file Ohci.h.

Referenced by portReset().

◆ m_pPeriodicEDList

ED* Ohci::m_pPeriodicEDList

private

Definition at line 401 of file Ohci.h.

◆ m_pPeriodicEDListPhys

uintptr_t Ohci::m_pPeriodicEDListPhys

private

Definition at line 402 of file Ohci.h.

◆ m_pPeriodicQueueTail

ED* Ohci::m_pPeriodicQueueTail

private

Definition at line 426 of file Ohci.h.

◆ m_pTDList

TD* Ohci::m_pTDList

private

Definition at line 413 of file Ohci.h.

◆ m_pTDListPhys

uintptr_t Ohci::m_pTDListPhys

private

Definition at line 414 of file Ohci.h.

◆ m_RootHubLock

Spinlock Ohci::m_RootHubLock

private

Serializes root-hub register access between reset and IRQ paths.

Definition at line 385 of file Ohci.h.

Referenced by irq(), portReset(), and replaySuppressedConnectionChange().

◆ m_RootHubStatusChangeDesired

bool Ohci::m_RootHubStatusChangeDesired

private

Definition at line 386 of file Ohci.h.

◆ m_ScheduleChangeLock

Spinlock Ohci::m_ScheduleChangeLock

private

Definition at line 390 of file Ohci.h.

◆ m_SubmissionOperations

OperationBarrier Ohci::m_SubmissionOperations

private

Short-lived create/build/submit operations closed before ED scanning.

Definition at line 447 of file Ohci.h.

Referenced by addTransferToTransaction(), createTransaction(), and doAsync().

◆ m_TDBitmap

ExtensibleBitmap Ohci::m_TDBitmap

private

Definition at line 415 of file Ohci.h.

◆ m_TeardownPhase

Atomic<size_t> Ohci::m_TeardownPhase

private

Definition at line 388 of file Ohci.h.

The documentation for this class was generated from the following files:

Classes

Public Member Functions

Public Attributes

Protected Member Functions

Private Types

Private Member Functions

Static Private Member Functions

Private Attributes

Static Private Attributes

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ ControllerLock

◆ IrqProcessingLock

Member Enumeration Documentation

◆ Lists

◆ OhciConstants

Constructor & Destructor Documentation

◆ Ohci()

◆ ~Ohci()

Member Function Documentation

◆ addInterruptInHandler()

◆ addTransferToTransaction()

◆ cancelAsyncAndDrain()

◆ cancelInterruptInAndDrain()

◆ cancelRequest()

◆ createTransaction()

◆ detachED()

◆ doAsync()

◆ executeRequest()

◆ finishDeferredCompletion()

◆ getName()

◆ inInterruptCallbackContext()

◆ initialised()

◆ irq()

◆ portReset()

◆ prepareCompletion()

◆ ptv_ed()

◆ reclaimTransferDescriptors()

◆ removeED()

◆ removeFromDequeueList()

◆ removeFromFullSchedule()

◆ replaySuppressedConnectionChange()

◆ retireEDStorage()

◆ setRootHubStatusChangeSource()

◆ start()

◆ stop()

◆ terminalizeEDForTeardown()

◆ transitionControllerState()

◆ vtp_ed()

Member Data Documentation

◆ EdRegionBytes

◆ EdRegionOffsetMask

◆ m_AcceptedOperations

◆ m_BulkEDBitmap

◆ m_BulkListChangeLock

◆ m_CallbackOperations

◆ m_CancellationOperations

◆ m_CompletionDeliveries

◆ m_ControlEDBitmap

◆ m_ControlListChangeLock

◆ m_DeferredPortChanges

◆ m_DequeueCount

◆ m_DequeueList

◆ m_DequeueListLock

◆ m_FullSchedule

◆ m_Initialised

◆ m_IrqId

◆ m_IrqProcessingLock

◆ m_Mutex

◆ m_nPorts

◆ m_OhciMR

◆ m_pBase

◆ m_pBulkEDList

◆ m_pBulkEDListPhys

◆ m_pBulkQueueHead

◆ m_pBulkQueueTail

◆ m_pControlEDList

◆ m_pControlEDListPhys

◆ m_pControlQueueHead
